سوکت شبکه و مبدل SFP به فیبر

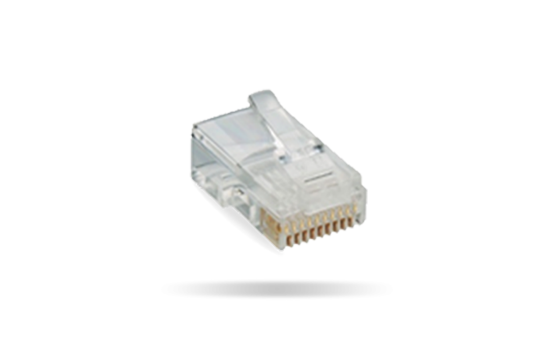

NS-3U 8P 6UTP
| 24 Port Metal Panel | |
| Applicable Standards | T568A / T568B |
| Type | UTP – Cat6 |
| Contact Resistance | 20m ohms |
| Insulation Resistance | 100M ohms |
| Temperature Rating | -40/80 °C |
| (Min / Max): | 3.4g / pcs |
| Weight | 24AWG to 23AWG |
| Wire Awg Min / Max | 0.40/0.55mm |
| (Solid / Stranded) | 1.3mm |
| Conductor Diameter | 03MU Micro-Inch Gold Plating |

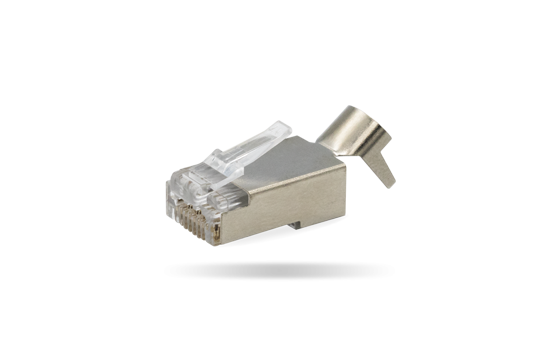

NS-3U 8P 6SFTP
| 24 Port Metal Panel | |
| Applicable Standards | T568A / T568B |
| Type | SFTP – Cat6 |
| Contact Resistance | 20m ohms |
| Insulation Resistance | 100M ohms |
| Temperature Rating | -40/80 °C |
| (Min / Max): | 6.8g / pcs |
| Weight | 24AWG to 23AWG |
| Wire Awg Min / Max | 0.40/0.55mm |
| (Solid / Stranded) | 1.5mm |
| Conductor Diameter | 03MU Micro-Inch Gold Plating |
KG-GLC20SC
| Performance | |
| Maximum Data Transfer Rate | 1.25 Gbps |
| MTBF | 3,381,761 Hours |
| Wavelength | 850nm |
| Physical Characteristics | |
| Color | Silver |
| Enclosure Type | Aluminum |
| Product Height | 12.5 mm [0.5 in] |
| Product Length | 56.6 mm [2.2 in] |
| Product Weight | 16 g [0.6 oz] |
| Product Width | 13.7 mm [0.5 in] |
| Performance | |
| Max Transfer Distance | 550 m (1804 ft) |
| Fiber Type | Single |
| Fiber Operating Mode | Full-Duplex |
| DDM | Yes |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| Hardware | |
| Industry Standards | IEEE 802.3z 1000BASE-SX |
| Compatible Brand | Cisco, KDT, Planet, D-Link, … |
| Connector(s) | |
| Local Unit Connectors | Fiber Optic LC Duplex Female |
| Performance | |
| Maximum Data Transfer Rate | 1.25 Gbps |
