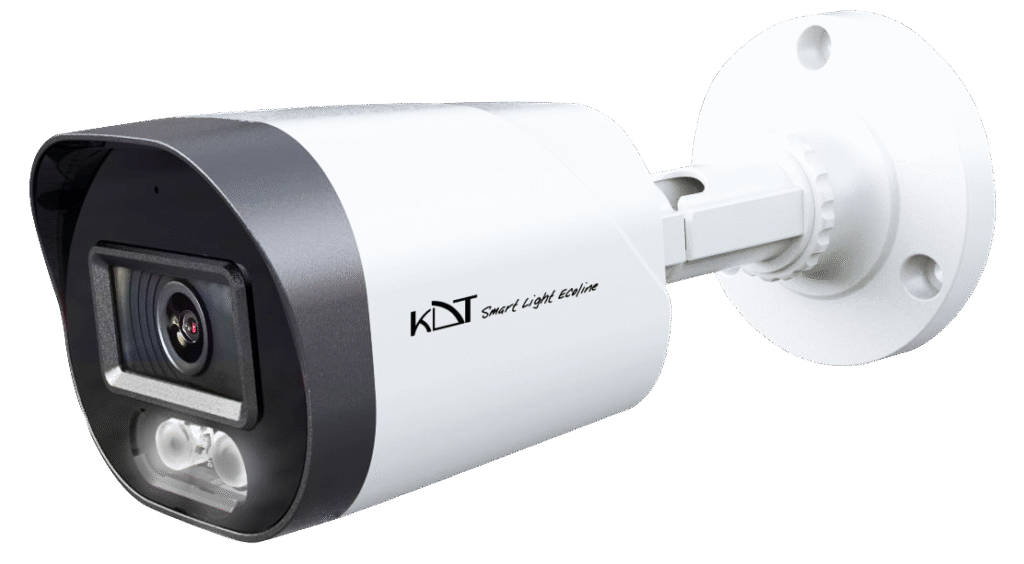

KI-B22LE20F-i30MU
Array
دسته بندی
اسمارت لاین اکولاین
توضیحات محصول
2MP , Dual Light , Fixed Lens2MP Progressive scan Cmos Sensor (1/3”)
3.6 mm Fixed Lens @F2.0
H.264+(Ultra H.264), H.265+ (Ultra H.265)
30fps@ 1080P(1920*1080), 30fps@ 960P, 30fps@ 720P
Dual Light Technology
PoE LAN, DC In
Dual-Core ARM Cortex-A7@900 MHz
IP67, 2KV Surge Protection
قابلیت های هوشمند:
|
سایر برتری ها :
|
شرایط گارانتی :دو سال گارانتی نقره ای بدون قید و شرط کی دی تیسه سال ضمانت پایداری کیفیت تصویرشامل: آبخوردگی، شکستگی، ضربه دیدگی، خسارت ناشی از صاعقه، زنگ زدگی، نوسانات برق، سایر اتفاقات و صدمات
|
| Camera | |
| Image Sensor | 2MP Progressive scan Cmos Sensor (1/3″) |
| CPU | Dual-Core ARM Cortex-A7@900 MHz |
| Lens | 3.6 mm Fixed Lens @F2.0 |
| Resolution | 1920*1080 (2MP) |
| Available IR Range | 30~40 m Smart IR SMD Technology (1 pcs Warm Light) |
| D/N Filter | IR cut filter with auto switch |
| Min Illumination | Color: 0.01 lux(AGC on) – B/W: 0.0 Lux(IR on) |
| Angle of View | H-FOV: 78°, V-FOV: 41°, D-FOV: 92° |
| Night Vision | Dual Light Technology |
| Picture Adjust | |
| Picture Function | DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Shutter Speed | Manual (1/3 ~ 1/100,000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto, Color on, Color off |
| S/N | > 52dB |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video / Audio | |
| Video Compression | H.264/Ultra H.264, H.265/Ultra H.265 |
| Audio Compression | G.711A, G.711U |
| Frame Rate(60Hz) | 30fps@1080P(1920*1080), 30fps@960P, 30fps@720P |
| Transmission Stream | Dual Stream (Video Bit Rate:11 Kbps~8 Mbps) |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, IPv6 |
| Compatibility | Onvif Ver2.6, Profile S, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Smart Device | IE, Edge, Firefox, Chrome |
| Function | |
| Recording | NVR, CMS, VMS |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | N/A |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | 2 Smart Function Line Crossing,Area Intrusion |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | N/A |
| Internal Audio | Internal Mic |
| Alarm | N/A |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Control | N/A |
| Memory Slot | N/A |
| General | |
| Protection Rating | IP67, 2KV Surge Protection |
| Power Supply | DC12V ± 10% |
| POE Supply | IEEE802.3af – Max 6.5 Watt |
| Web Language | English, Persian |
| Dimension | 152*65 mm |
| Weight | 330 g |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Guarantee | |
| Product Guarantee | 3 Years Platinum Guarantee |
| MTBF | 500k hrs min. MIL-HDBK-217F (25°) |
| Certificates | EN, CN, FCC, CFR |
