تجهیزات فیبر نوری
Fiber Optic Cable
| Conductor | |
| 23 AWG | Size |
| Spacer / Copper Wires / 1 Jacket | Design Type |
| 0.55 ± 0.5 | Diameter (mm) |
| Insulation | |
| PE-UTP | Type |
| Nom. 5.5±0.5mm | Cable Diameter |
| Nominal Thickness = 0.5 mm | Jacket Thickness |
| N/A | Shielding |
| Physical | |
| -30 ± 2°C X 4hrs no crack | 1. Cold Bend Test |
| AC 1.7KV for 2s | 2. Dielectric strength |
| Before Aging | After Aging | 3.Insulation |
| 2400 | 75% before aging (100°C X 48hours) | Min Tensile Strength (psi) |
| 300 | 75% before aging (100°C X 48hours) | Min elongation (%) |
| Jacket | |
| 50 | Min Bending Radius (mm) |
| -10°C to +60°C | Installation Temperature |
| Jacket | |
| PVC | Type |
| 6.1 ± 0.3 | Overall Diameter (Mm) |

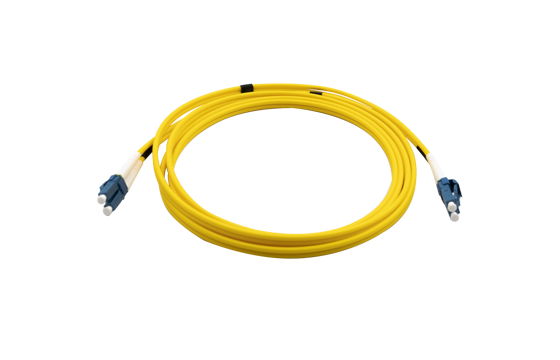

Patch Cord Cable
| Physical | |
| Termination | Optical |
| Color | Yellow |
| Jacket | PVC |
| Transmission Characteristics | |
| Type | Single Mode |
| Connector Type | SC to LC |
| Mechanical Characteristics | |
| Packaging | Individually Packaged in a Plastic Bag |
| Usage Characteristics | |
| Minimum Static Operating Bending Radius | 10mm |
| Operating Temperature, Range | -10 ~ 50°C |
| Meter | 10 / 20 / 30 CM |

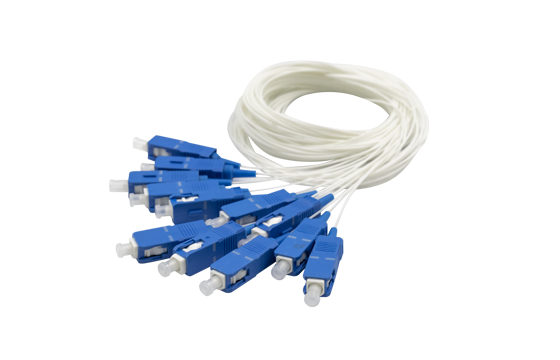

Pigtail
| Physical | |
| Termination | Pigtail |
| Color | white |
| Jacket | PVC |
| Transmission Characteristics | |
| Type | Single Mode |
| Connector Type | SC/UPC |
| Mechanical Characteristics | |
| Packaging | Individually Packaged in a Plastic Bag |
| Usage Characteristics | |
| Minimum Static Operating Bending Radius | 10mm |
| Operating Temperature, Range | -10 ~ 50°C |
| Meter | 150 CM |
| Insertion Loss |
0.28DB |
| Return Loss |
55.8DB |

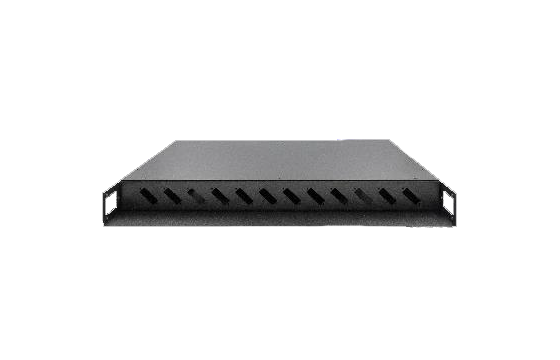

FP-12D1UF
Patch Panel 24 Core Rackmount
Ability To Install Dx Duplex Adaptor
It Has 4 Inputs Of Fiber Optic Cable Reinforced By Gland To Reduce Pressure
Has An Abs Cassette
-24Core Cassette Capacity
-24Core Capacity Patch Panel Port
Size: 28*43 Cm
It Has A Thick Layer Of Scratch-Resistant Blend Powder Paint
Rack Mountable
Ability To Install Dx Duplex Adaptor
It Has 4 Inputs Of Fiber Optic Cable Reinforced By Gland To Reduce Pressure
Has An Abs Cassette
-24Core Cassette Capacity
-24Core Capacity Patch Panel Port
Size: 28*43 Cm
It Has A Thick Layer Of Scratch-Resistant Blend Powder Paint
Rack Mountable

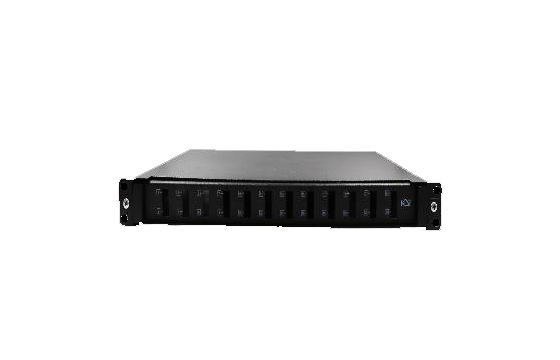

FP-12D1UR
Patch Panel 24 Core Rackmount
Ability To Install Dx Duplex Adaptor
It Has 4 Inputs Of Fiber Optic Cable Reinforced By Gland To Reduce Pressure
Has An Abs Cassette
-24Core Cassette Capacity
-24Core Capacity Patch Panel Port
Size: 28*43 Cm
It Has A Thick Layer Of Scratch-Resistant Blend Powder Paint
Rack Mountable
Ability To Install Dx Duplex Adaptor
It Has 4 Inputs Of Fiber Optic Cable Reinforced By Gland To Reduce Pressure
Has An Abs Cassette
-24Core Cassette Capacity
-24Core Capacity Patch Panel Port
Size: 28*43 Cm
It Has A Thick Layer Of Scratch-Resistant Blend Powder Paint
Rack Mountable

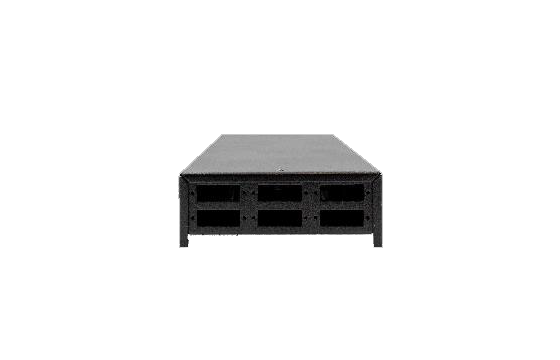

FP-06DW
Pach Panel 12 Core Wallmount
Ability To Install DX Duplex Adaptor
It Has 2 Inputs Of Fiber Optic Cable Reinforced By Gland To Reduce Pressure
Has An AbS Cassette
12-Core Cassette Capacity
12-Core Capacity Patch Panel Port
Sc To Sc Duplex Adaptor 6 Number
Size: 11.5*29 cm
It Has A Thick Layer Of Scratch-Resistant Blend Powder Paint
Wall Mountable
Ability To Install DX Duplex Adaptor
It Has 2 Inputs Of Fiber Optic Cable Reinforced By Gland To Reduce Pressure
Has An AbS Cassette
12-Core Cassette Capacity
12-Core Capacity Patch Panel Port
Sc To Sc Duplex Adaptor 6 Number
Size: 11.5*29 cm
It Has A Thick Layer Of Scratch-Resistant Blend Powder Paint
Wall Mountable
